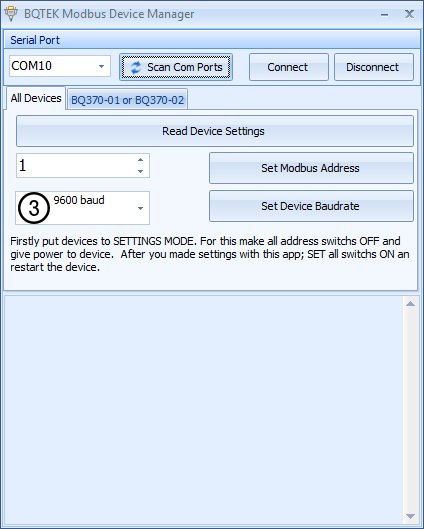

BQTEK Modbus Device Manager Software helps you for making settings of Modbus IO Devices.
It can be used for this devices:
- BQ360
- BQ352
- BQ351
- All BQ370 and BQ370N devices
You change modbus address and some sensor details with this application
You can find detailed information in your device’s user manual. For making settings from “Modbus Device Manager”; you must put device settins mode. Power off device and put all DIP switchs to “OFF” position. Now you can give power to device. You will see power and busy led is ON together; this shows device is in “Settings Mode”. Now connect RS485 to computer and use “Modbus Device Manager” application for reading or changing device settings.
After making changes you must exit from “Settings Mode” For this set all DIP switchs ON position and reset the power of device.
Supported baudrates are 2400, 4800, 9600, 14400, 19200, 28800 and 38400 baud.
If you dont have RS485 port on your computer you can use USB-RS485 converter devices for this.
Also expert users can use their own Modbus RTU application for making settings. Putting device to settings mode changes some communication parameters temporarly. It makes device modbus address 255 and baudrate 9600 Baud (8Bit, N, 1) for temporarly. During settings mode you can adjust device features with modbus rtu protocol. If you want to use your own way instead of “Modbus Manager Software” you can get this special register numbers from product page or you can contact with us for this.
